SCHÜCO AD UP SERIES
Schüco entrance doors combine numerous, timeless designs with the highest security, thermal insulation, weathertightness, and durability.

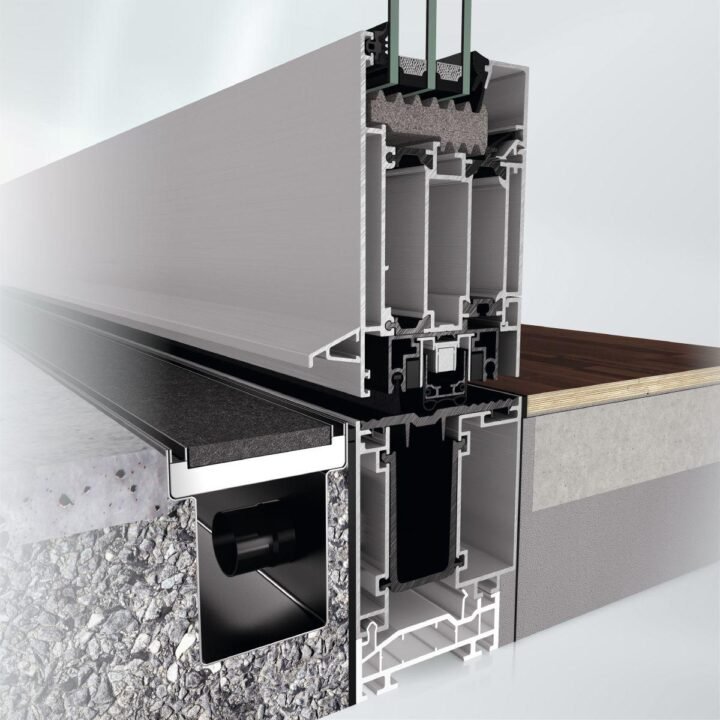

The Schüco AD UP (Aluminium Door Universal Platform) system combines functional reliability with modern, high-quality design. The unique construction principle using a 5-chamber profile composition provides stability and all the technical prerequisites for an intelligent door system, whether a stylish front door or a frequently used commercial door. The two core basic depths of 75 and 90 mm allow the system platform to be tailored to individual requirements for energy efficiency and weathertightness.
The AD UP door system achieves outstanding thermal insulation properties up to passive house level. Available in heights of up to 3 meters and widths of up to 1400 mm, the AD UP range can provide the grandest entrances.

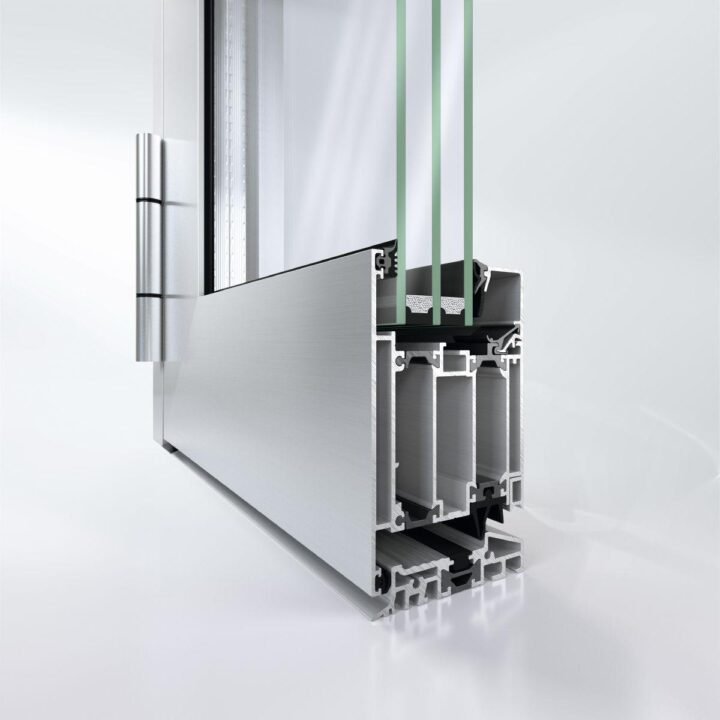

SCHÜCO AD UP 75
-
Thick door leaf: 90 mm
Uf value: (≥)1.4 W/(m²·K)
Max. height: 2500 mm
Max. width: 1250 mm
Glass thickness: 90 mm
Design options integrated in the door infill for all system basic depths offer developers, architects and client additional choices
-
Uf value: (≥) 1.4 W/(m²·K)
Max. glass/panel thickness: 90 mm
Max. vent width: 1250 mm
Max. vent height: 2500 mm
Max. weight: 200 kg
Air permeability: Class 4
Watertightness: Class 5A
Burglar resistance: Up to RC2
Wind load resistance: Class C2 / B2
-
Thick door leaf: 90 mm
Uf value: (≥)1.3 W/(m²·K)
Max. height: 2500 mm
Max. width: 1250 mm
Glass thickness: 28-68 mm
Opening type: Side-hung, Inward and outward, Single and double-vent
-
Uf value: (≥) 1.3 W/(m²·K)
Max. glass/panel thickness: 68 mm
Max. vent width: 1250 mm
Max. vent height: 2500 mm
Max. weight: 200 kg
Air permeability: Class 4
Watertightness: Class 5A
Burglar resistance: Up to RC1
Wind load resistance: Class C2 / B2
-
Thick door leaf: 75 mm
Uf value: (≥)1.6 W/(m²·K)
Max. height: 3000 mm
Max. width: 1400 mm
Glass thickness: 13-53 mm
Opening type: Side-hung, Inward and outward, Single and double-vent
-
Uf value: (≥) 1.6 W/(m²·K)
Max. glass/panel thickness: 53 mm
Max. vent width: 1400 mm
Max. vent height: 3000 mm
Max. weight: 200 kg
Air permeability: Class 4
Watertightness: E 750
Burglar resistance: Up to RC2
Wind load resistance: Class C3 / B3

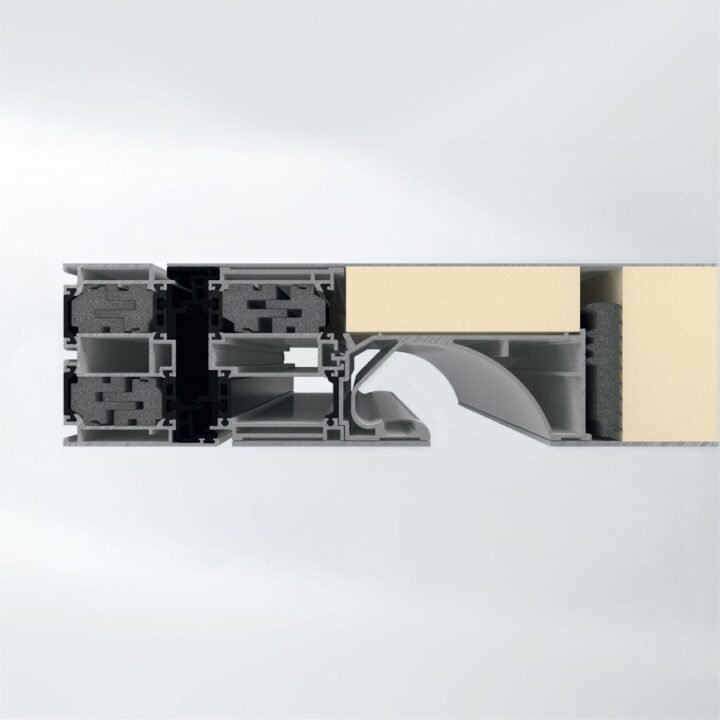

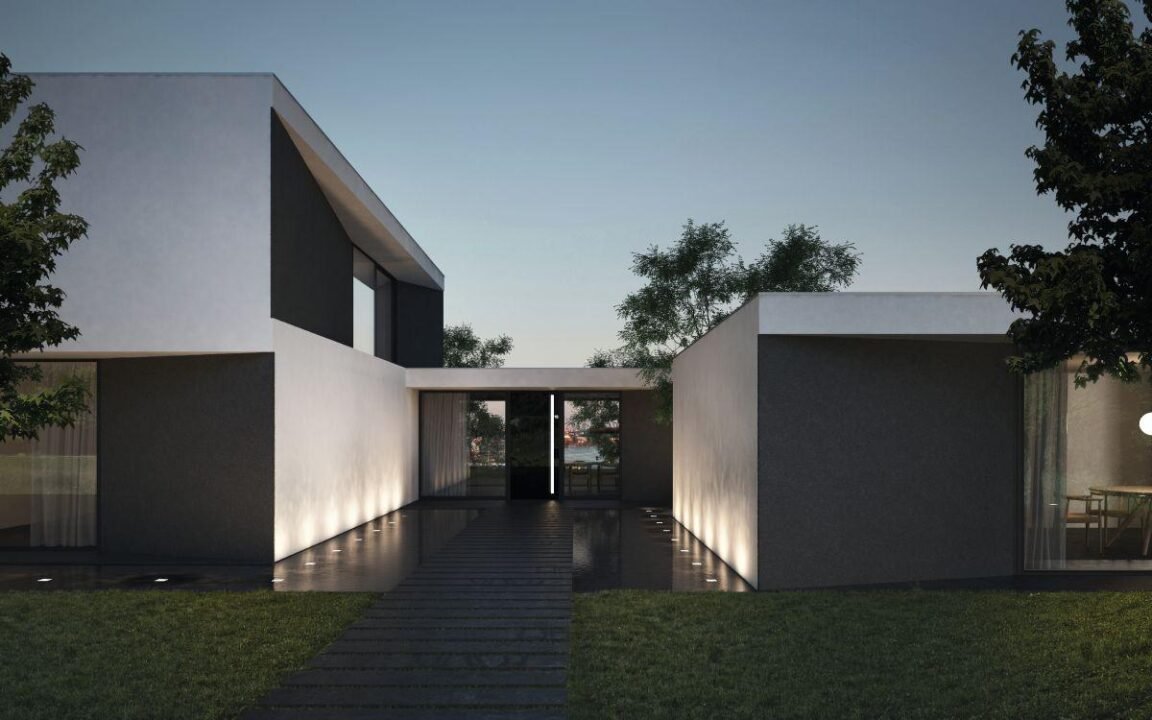

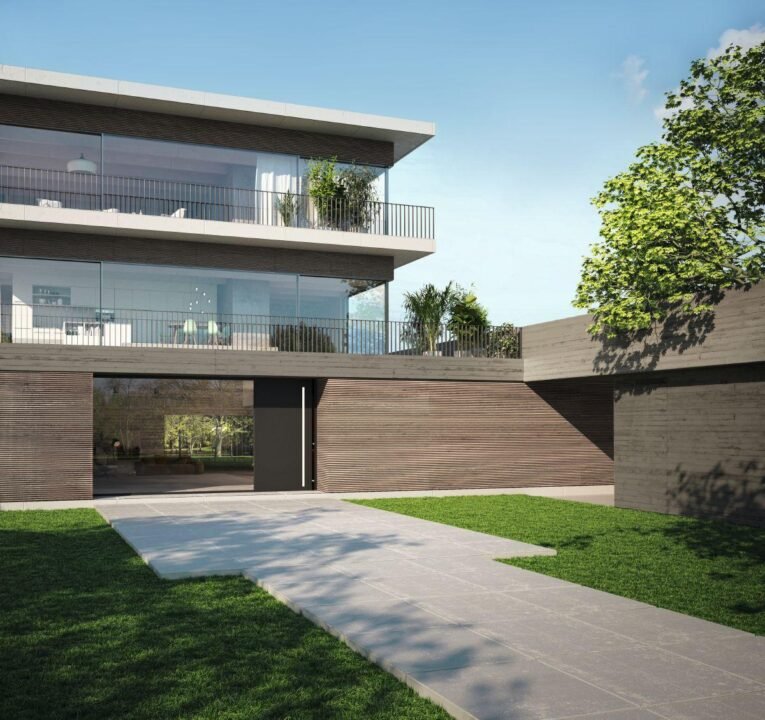

AD UP Design Edition

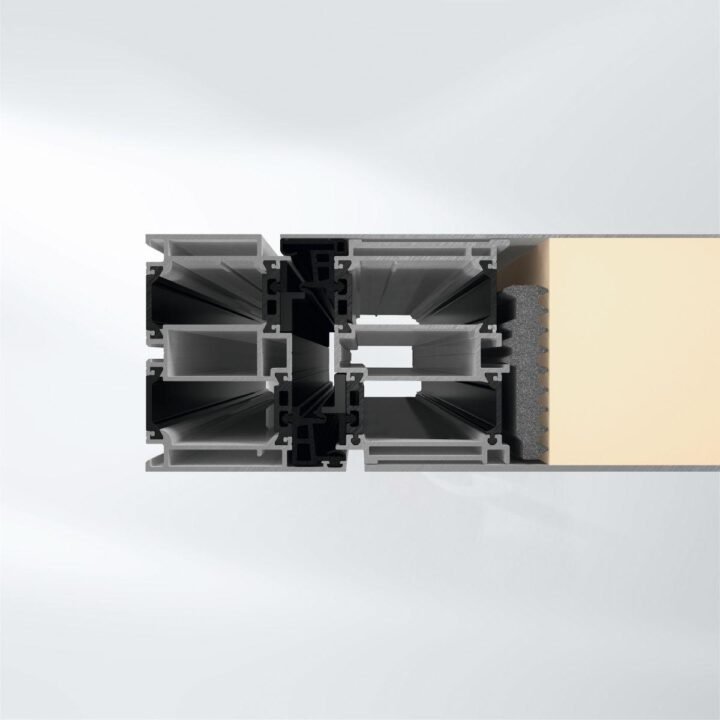

SCHÜCO AD UP 90

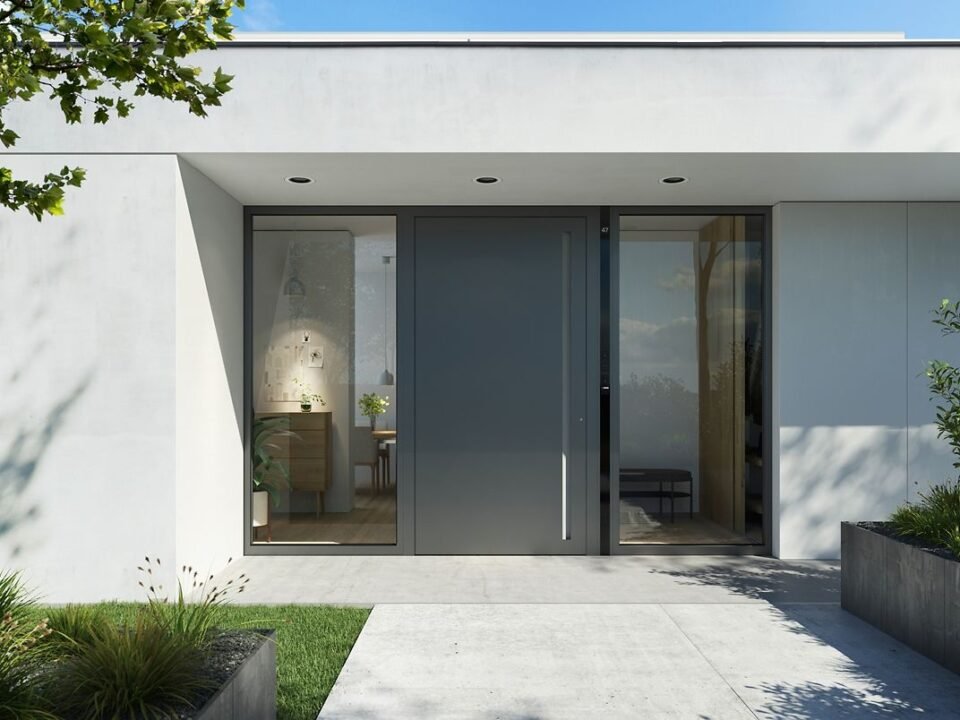

AD UP 75
AD UP 75
AD UP 90
AD UP Design Edition
AD UP 75
AD UP 75
AD UP 75
AD UP 90
AD UP 90
AD UP Design Edition
AD UP Design Edition

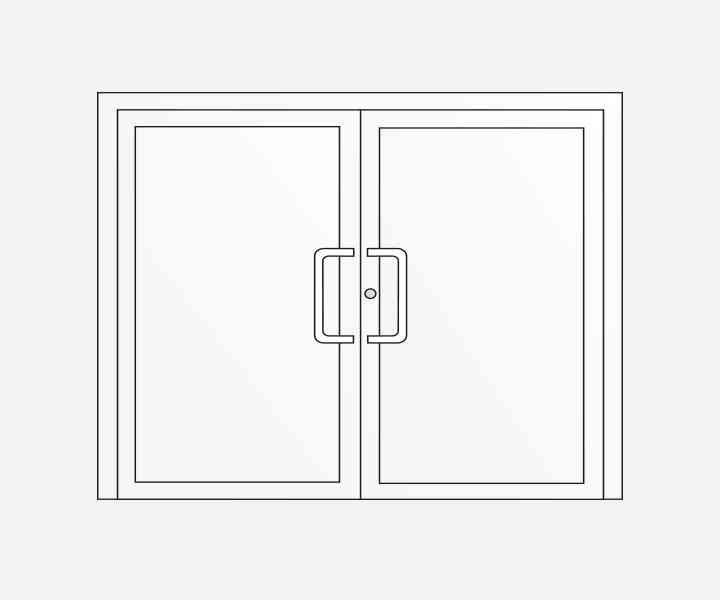

Double-leaf entrance door, can also be constructed with sidelights and toplight

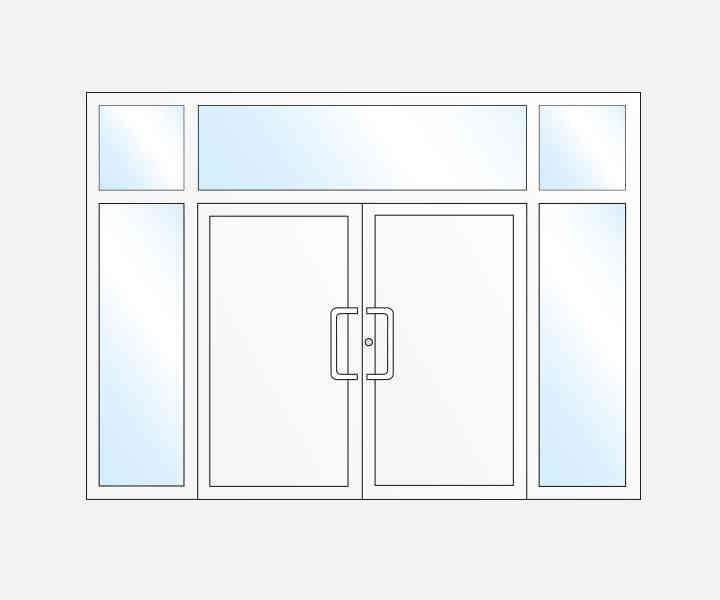

Double-leaf entryway with sidelights and toplight

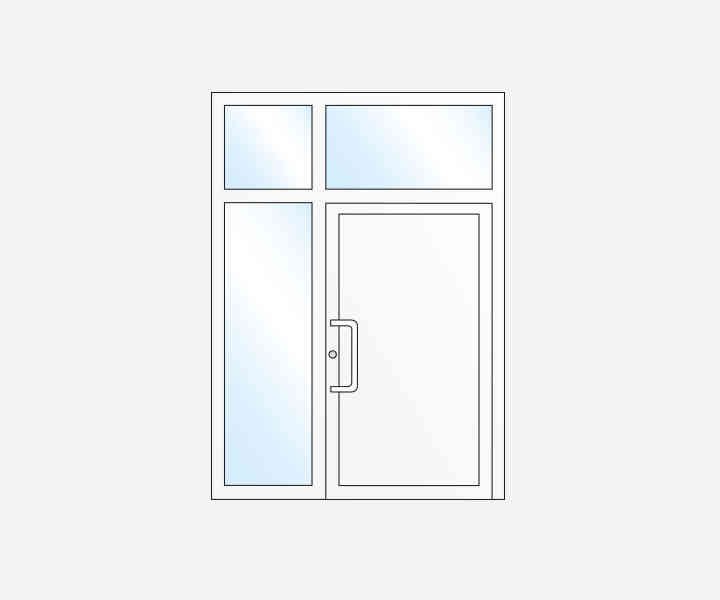

Single-leaf entrance door with sidelight and toplight

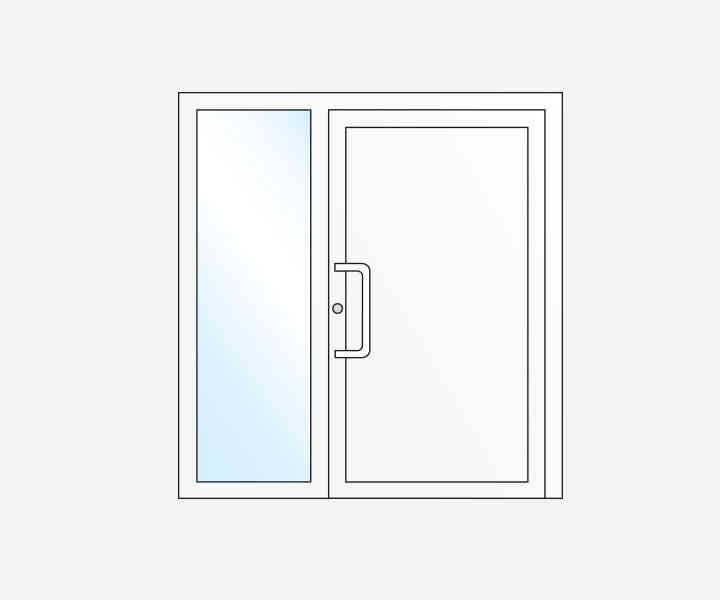

Single leaf entrance door with sidelight, left or right

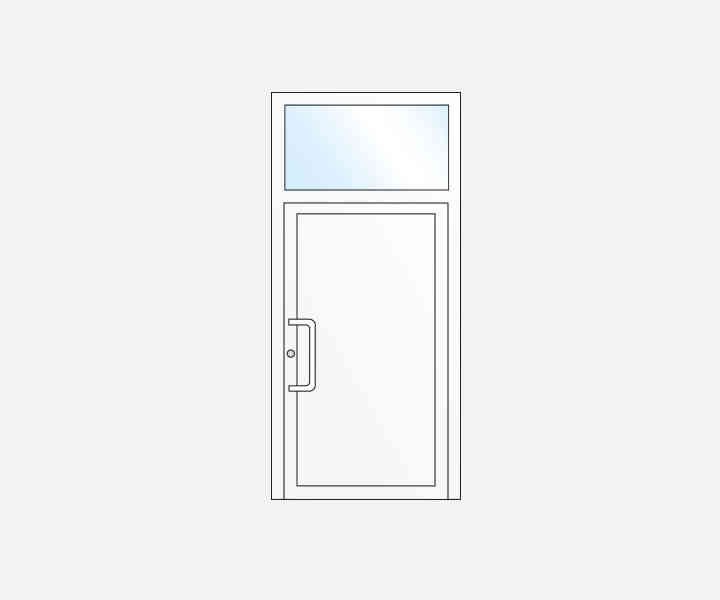

Single-leaf entrance door with toplight

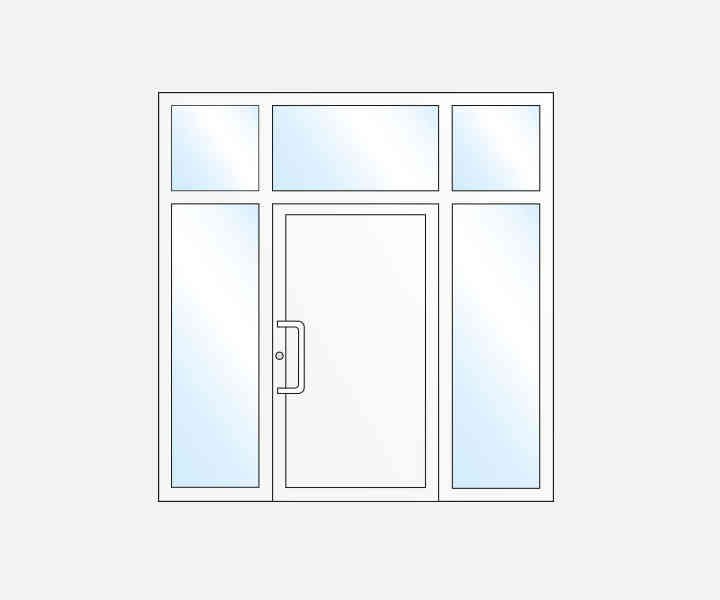

Single-leaf entrance door with two sidelights and toplight

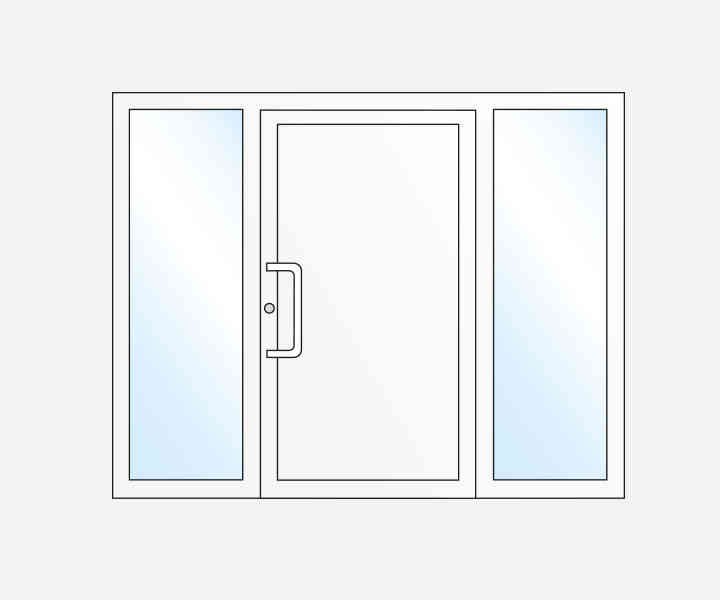

Single-leaf entrance door with two sidelights

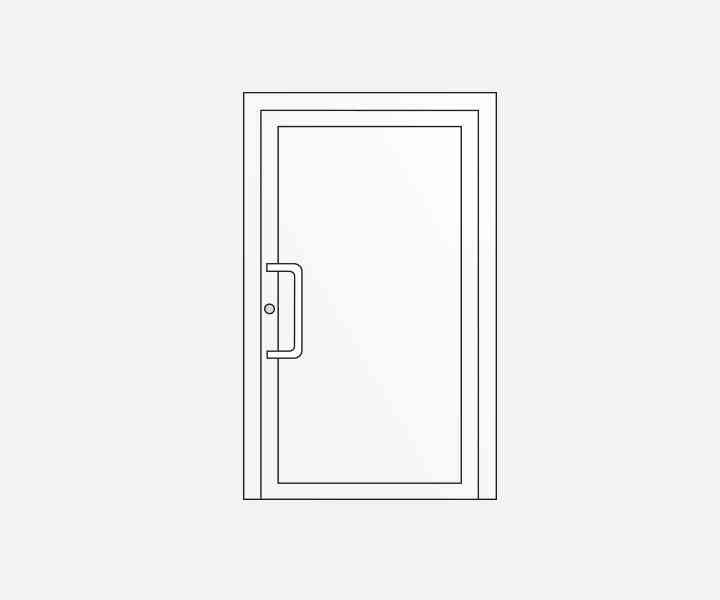

Single-leaf entrance door

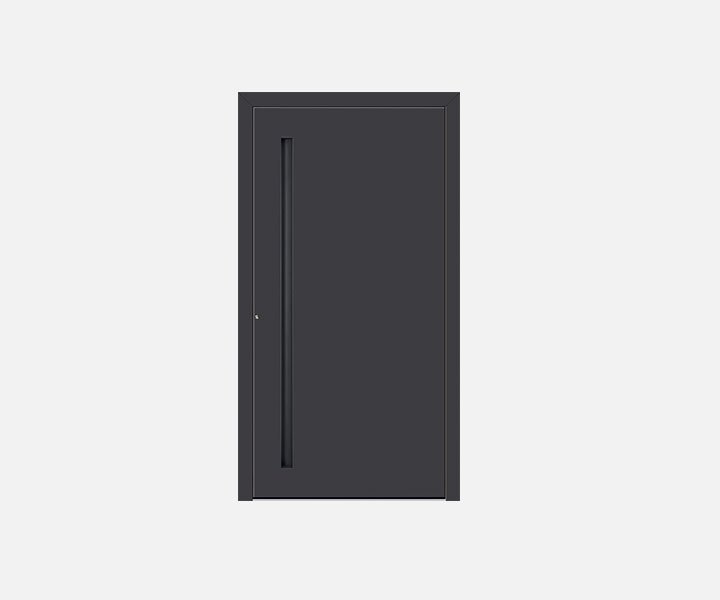

Lumis door infill

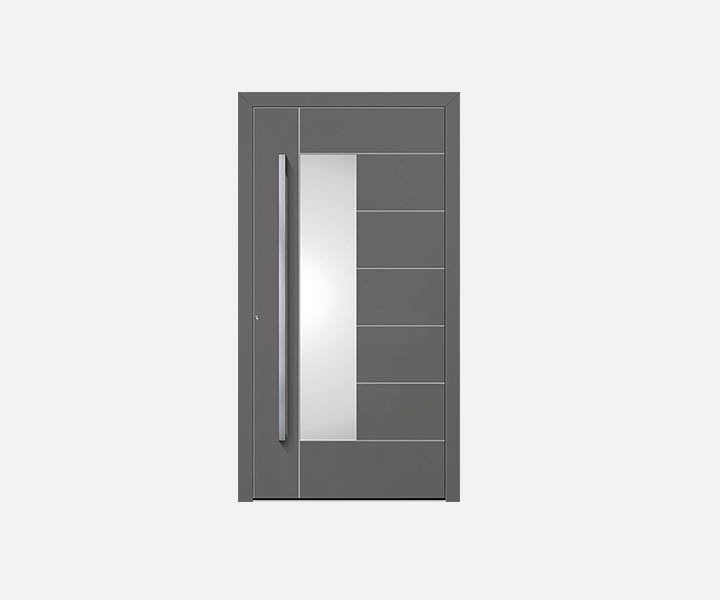

Metris door infill
