SCHÜCO AWS 75
Maximum transparency with minimal face width. The SCHÜCO series AWS 75 impresses in terms of design and comfort in all dimensions. This means that even large glazing projects are entirely possible. This system is particularly suitable for bright living and working rooms with maximum transparency.
An additional benefit for architects and specifiers is the wide range of opening types such as tilt/slide vents, bottom-hung toplights, or horizontal and vertical pivot vents.
A wide range of profiles is available within the system platform, including corner mullions, structural mullions, symmetrical and asymmetrical mullions, and several design variations and additional combination options, such as with Schüco sun shading and ventilation systems.

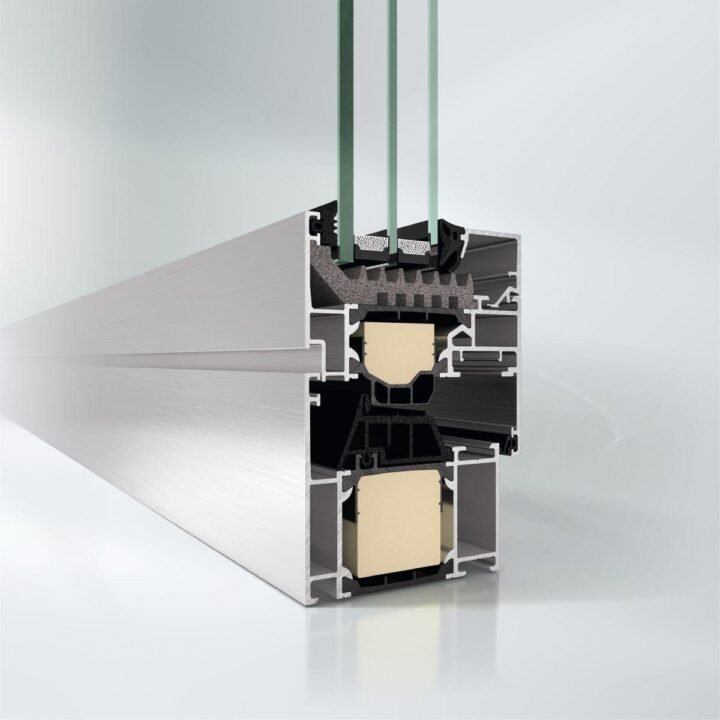

SCHÜCO AWS 75 SI

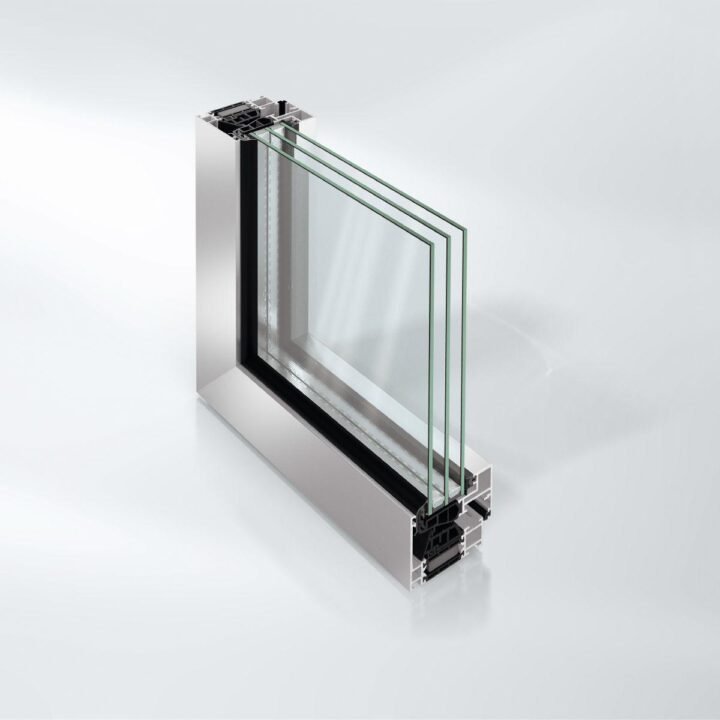

SCHÜCO AWS 75 BS
-
Uf value = 1.7 W W/(m2K)
Flush-fitted vent profile appearance on the inside, minimal gasket sightlines, maximum transparency with the narrowest of internal and external face widths
Excellent weather-tightness and sound reduction values even in extreme weather conditions
Even transfer from inside to outside (no profile offset)
Concealed drainage without externally visible profile holes and cover caps
-
System basic depth: 75 mm
Min. face width: 55 mm
Uf value: (≥)1.7 W/(m²·K)
Max. glass/panel thickness: 50 mm
Max. vent width: 1450 mm
Max. vent height: 2500 mm
Max. sound reduction: 46 dB(A)
Air permeability: Class 4
Watertightness: Class 9A
Burglar resistance: Up to RC 2
Wind load resistance: Class C5 / B5
CE marking: Yes
-
Uf value = 1.3 W/(m2K)
Also available in face width 85mm with triple glazing with Uw value = 1.0 W/(m2K)
Block window system with concealed sashes enables narrow face widths from 67 mm
Large range of profiles from mullion profiles with up to 44 mm face width and clamping frame up to 51 mm, forend sashes and sash rungs
New centre gasket provides optimum thermal insulation
Simple assembly due to new material mix
-
System basic depth: 75 mm
Min. face width: 67 mm
Uf value: (≥)1.3 W/(m²·K)
Max. glass/panel thickness: 54 mm
Max. vent width: 1500 mm
Max. vent height: 2200 mm
Max. sound reduction: 49 dB(A)
Air permeability: Class 4
Watertightness: Class 9A
Burglar resistance: Up to RC 2
Wind load resistance: Class C5 / B5
CE marking: Yes
-
Uf values from 0.92 W/(m2K)
With a view width of 117 mm, the Uf value is 1.2 W/(m2K)
Glass system seal with foam rubber foam core
Insulated glazing rebate via a foam insulation wedge
3 chamber for optimized thermal insulation minimized heat loss due to coextruded middle seal
Extended insulation zone with foam composite insulation
Inward and outward opening options available
Reduction of assembly time due to improved processing of glazing rebate insulation as a shaped part
-
System basic depth: 75 mm
Min. face width: 91 mm
Uf value: (≥)0.92 W/(m²·K)
Max. glass/panel thickness: 61 mm
Max. vent width: 1700 mm
Max. vent height: 2500 mm
Max. sound reduction: 48 dB(A)
Air permeability: Class 4
Watertightness: Class 9A
Burglar resistance: Up to RC3
Wind load resistance: Class C5 / B5
CE marking: Yes

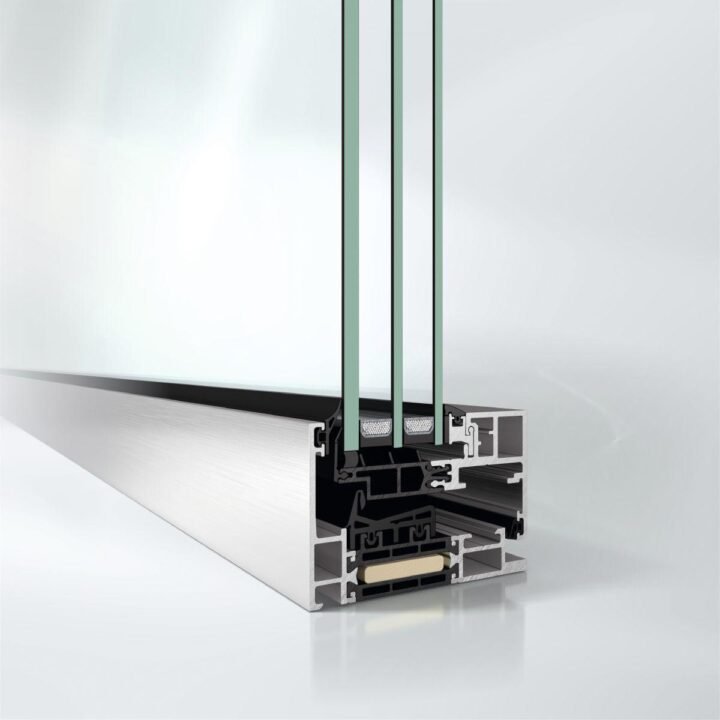

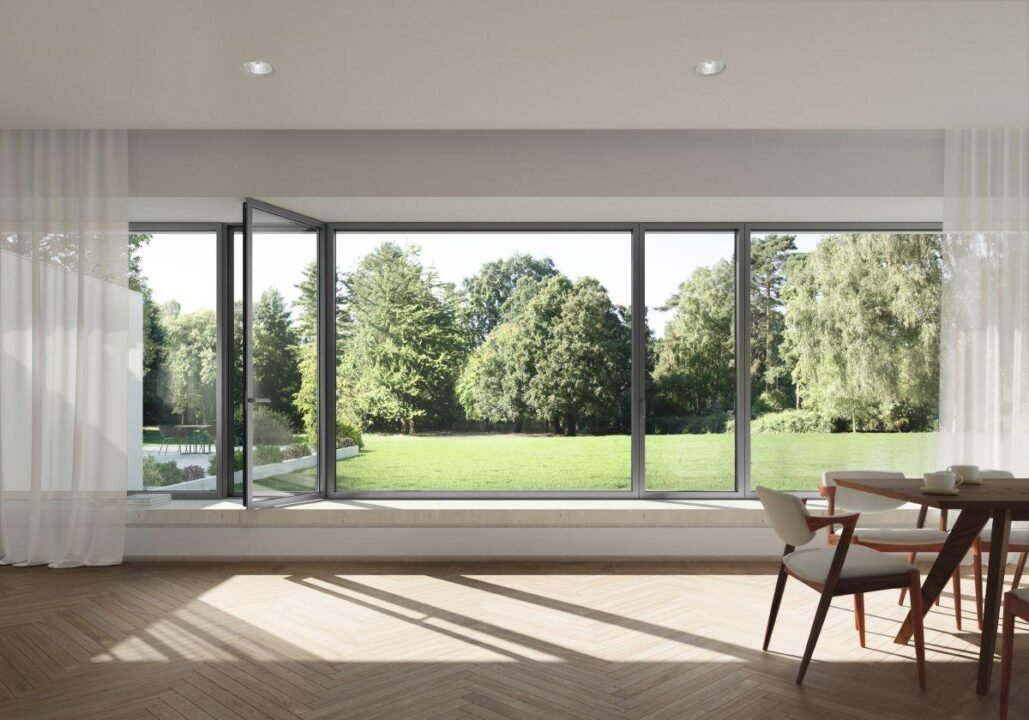

SCHÜCO AWS 75 PD
