SCHÜCO ASE 67 PD Sliding Door

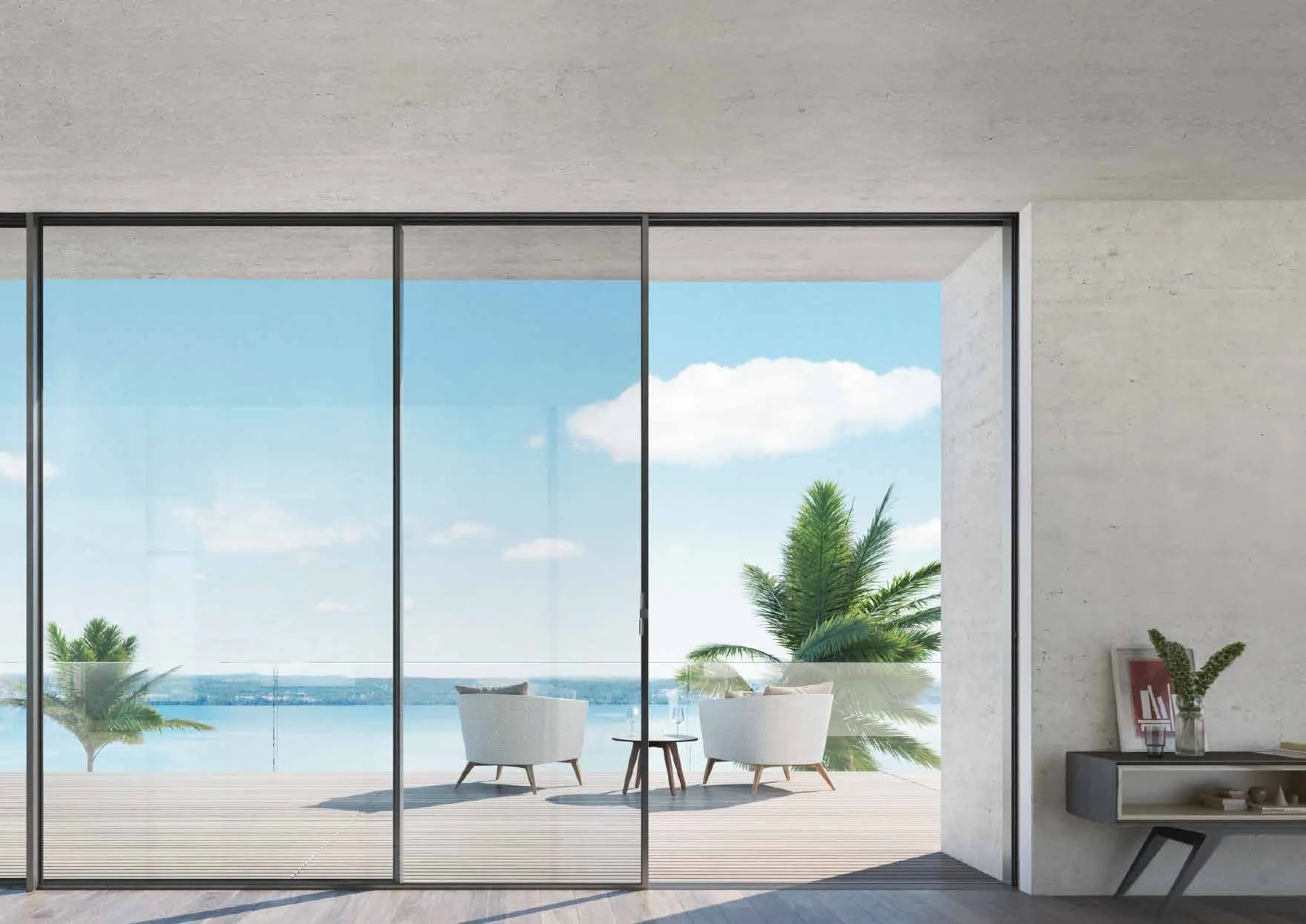

The Schüco ASE 67 PD is an ultra-slim panorama design sliding door that creates floor-to-ceiling glass walls with minimal visible framework. “67 PD” denotes a 67 mm vent frame in a Panorama Design configuration – delivering impressively narrow interlock sightlines (as low as 31 mm) for nearly unobstructed views. This sliding system was designed for luxury comfort and contemporary style, allowing large glass panels to glide open with ease. Thanks to fiberglass-reinforced components and precision engineering, the ASE 67 PD achieves both high structural strength and excellent thermal performance (Uw ~1.0 W/m²K with triple glazing). Homeowners and architects love its seamless indoor-outdoor transition – perfect for capturing BC’s stunning panoramas – while still meeting energy efficiency needs and rigorous air/water tightness for the coastal climate.
Notable Features
Panoramic design means the frame is nearly invisible – creating a wide glass wall that brings the outdoors in. The ASE 67 PD utilizes a fiberglass-reinforced composite in the sash, providing high strength with reduced weight, so even large doors feel light to move. It offers flush floor tracks for a barrier-free transition to patios (great for accessibility and clean design). Thermal breaks and insulation gaskets enable it to achieve low U-values for sliding doors, making it suitable for energy-conscious projects in Vancouver and British Columbia. Built-in drainage and robust sealing keep rain and drafts out, even on exposed oceanfront sites. The system’s contemporary look and slim profile complement modern architectural styles beautifully.
Recommended Applications
Tailor-made for luxury homes, condos, and vacation properties where panoramic ocean, mountain, or city views are the focus. Common in West Coast modern architecture that emphasizes indoor-outdoor living, such as waterfront villas and high-end renovations. Also used in select commercial spaces or penthouse suites to create movable glass walls. The ASE 67 PD performs well in coastal BC weather, making it a top choice for beachfront residences that seek maximum views without sacrificing comfort.
Key Specs
-
67 mm sash depth; available with flush-fitted threshold options (177 mm or 267 mm frame base for smooth, low-profile sills).
-
Whole-unit Uw from ~1.0 W/(m²·K) (with high-performance glazing), enabling large glass doors that still conserve energy.
-
Glazing Capacity: 36 mm to 49 mm thick units (accommodates double or triple glazing for enhanced insulation).
-
Incredibly slim – 31 mm minimum interlock mullion width for maximum transparency.
-
Panels up to 3.2 m wide × 3.0 m tall, supporting ~400 kg glass panels. Allows expansive glass openings without compromising ease of operation.
-
Air permeability Class 4; Watertightness Class 9A (heavy rain); engineered for high wind loads (tested to ~C4/C5 equivalent) – ensuring reliable operation in storms.
-
Multi-point locking and optional upgrade to RC2 burglar resistance. Smooth lift-slide hardware for effortless gliding. (Motorization via Schüco TipTronic not available on this model).
SCHÜCO ASE 67 PD
-
Vent frame: 67 mm
Thermal insulation: from Uw = 1.0 W/(m²K)
Glass thicknesses: 36 to 49 mm
TipTronic Motorization: NO
With 177 mm / 267 mm basic frame depth at the bottom for maximum transparency and light penetration
-
Min. face width: 31 mm
Uf value: (≥) 1 W/(m²·K)
Max. glass/panel thickness: 49 mm
Max. vent width: 3200 mm
Max. vent height: 3000 mm
Max. sound reduction: 46 dB(A)
Max. vent weight: 400kg
Air permeability: Class 4
Watertightness: Class 9A
Burglar resistance: Up to RC 2
ASE 67
ASE 67
ASE 67
ASE 67
